Better physical fit and on-ear attractiveness

Our new EarWear 3.0 ensures that the audiological high performance of our hearing aids is delivered seamlessly when they are fitted to your clients' ears.

miniReceiver 3.0

ThinTube 3.0

Eartips 3.0 & Sleeves 3.0

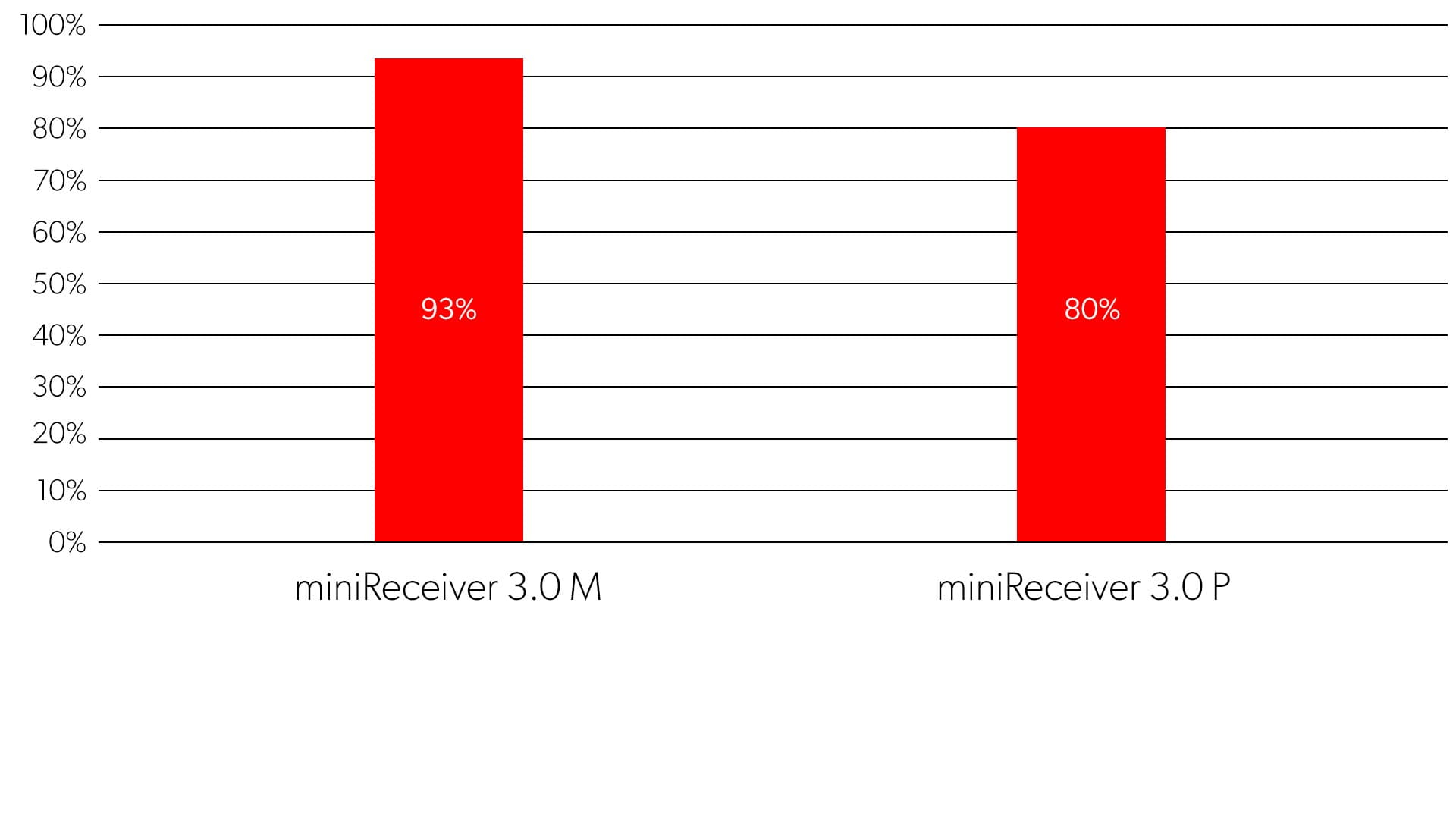

Higher physical fit rate

EarWear 3.0 has a higher physical fit-rate in combination with a new cable outlet, especially for P receivers.

Cosmetically appealing

The improved cable/tube bending and in-ear position ensures a closer fit on the ear, making it less visible.

A 25% size reduction of the plug system allows for smaller hearing aids.

Every variant is available in the lengths 0-4.

Better retention

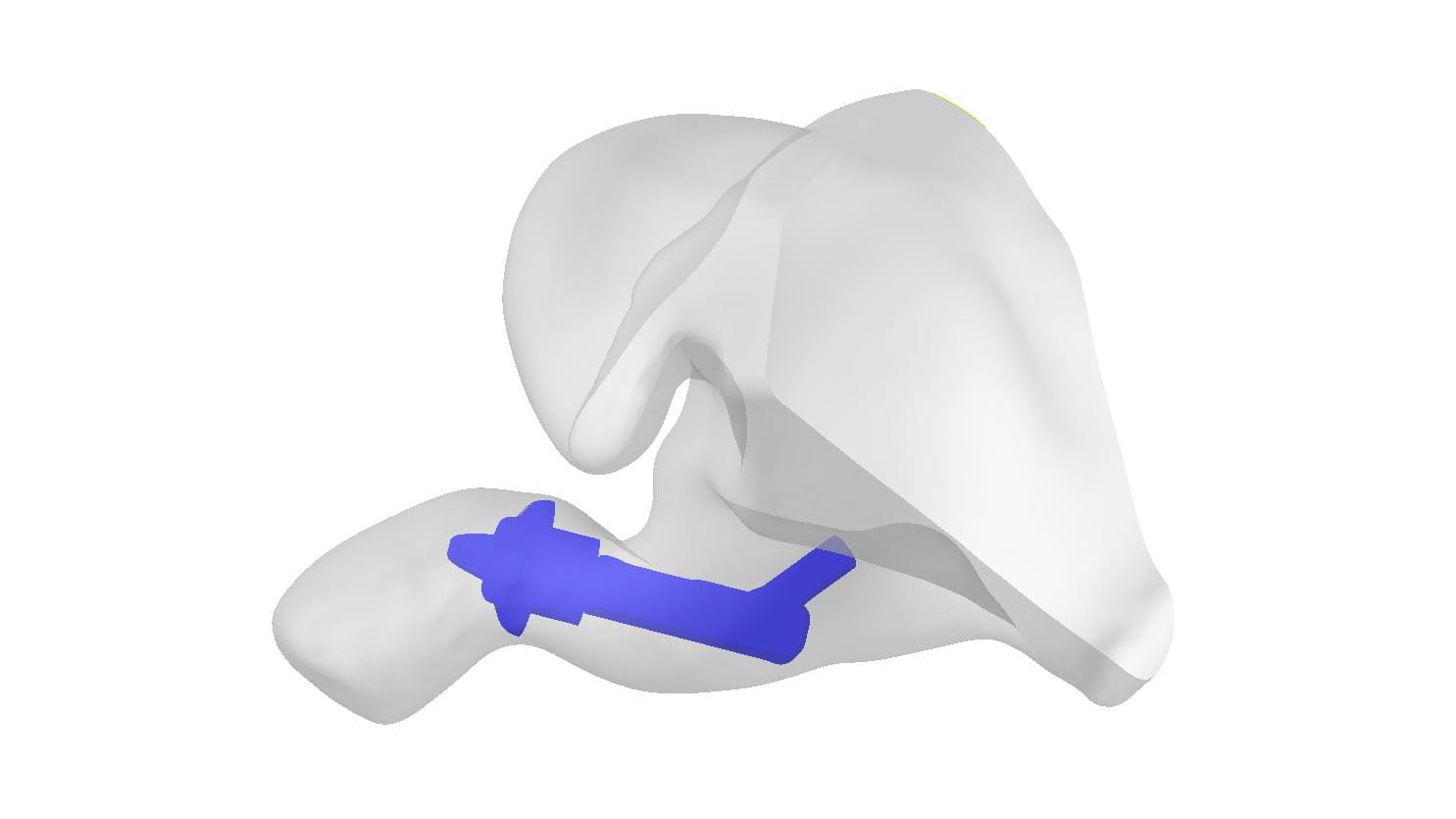

A special bending of the cable/tube and its outlet locks the acoustic coupling reliably into the ear canal, with no lateral migration and no need for an anchor.

Your EarWear 3.0 advantages at a glance:

Higher physical fit rate
Cosmetically appealing
Better retention
New sleeves
Smaller hearing aids
Improved usability

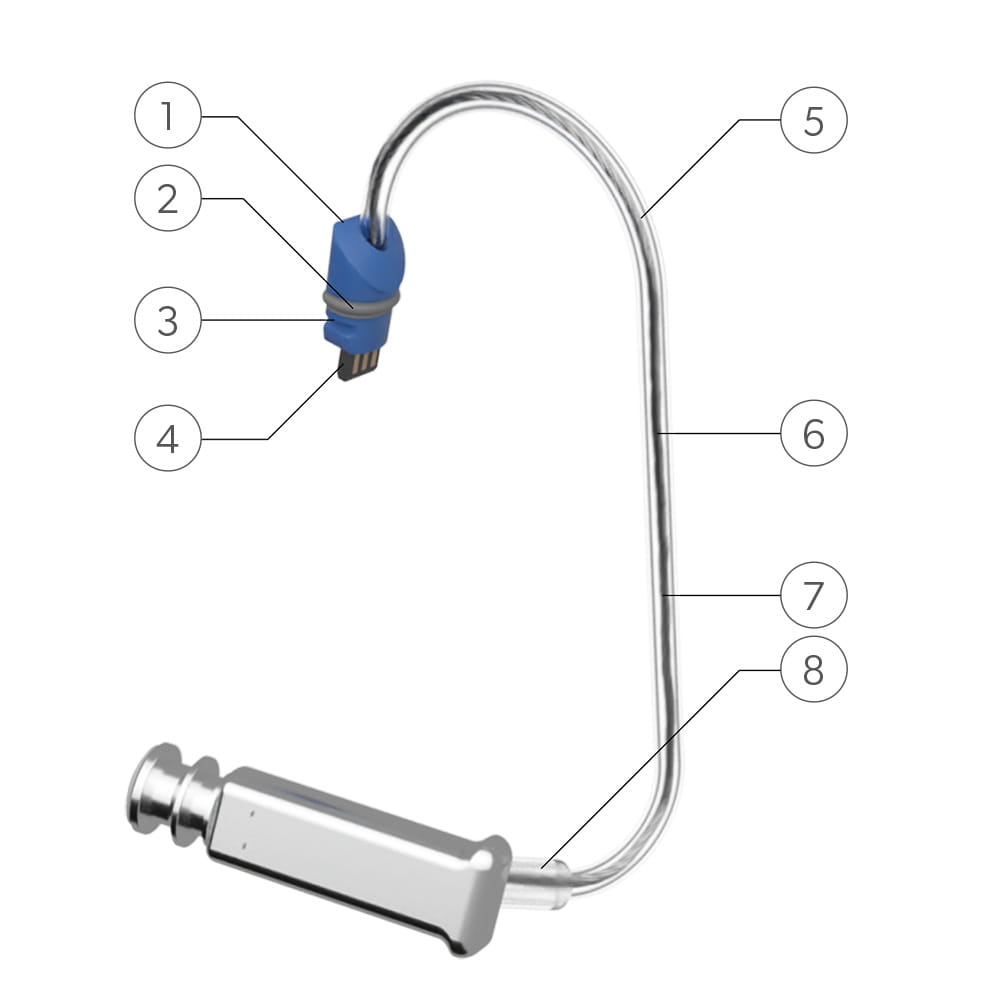

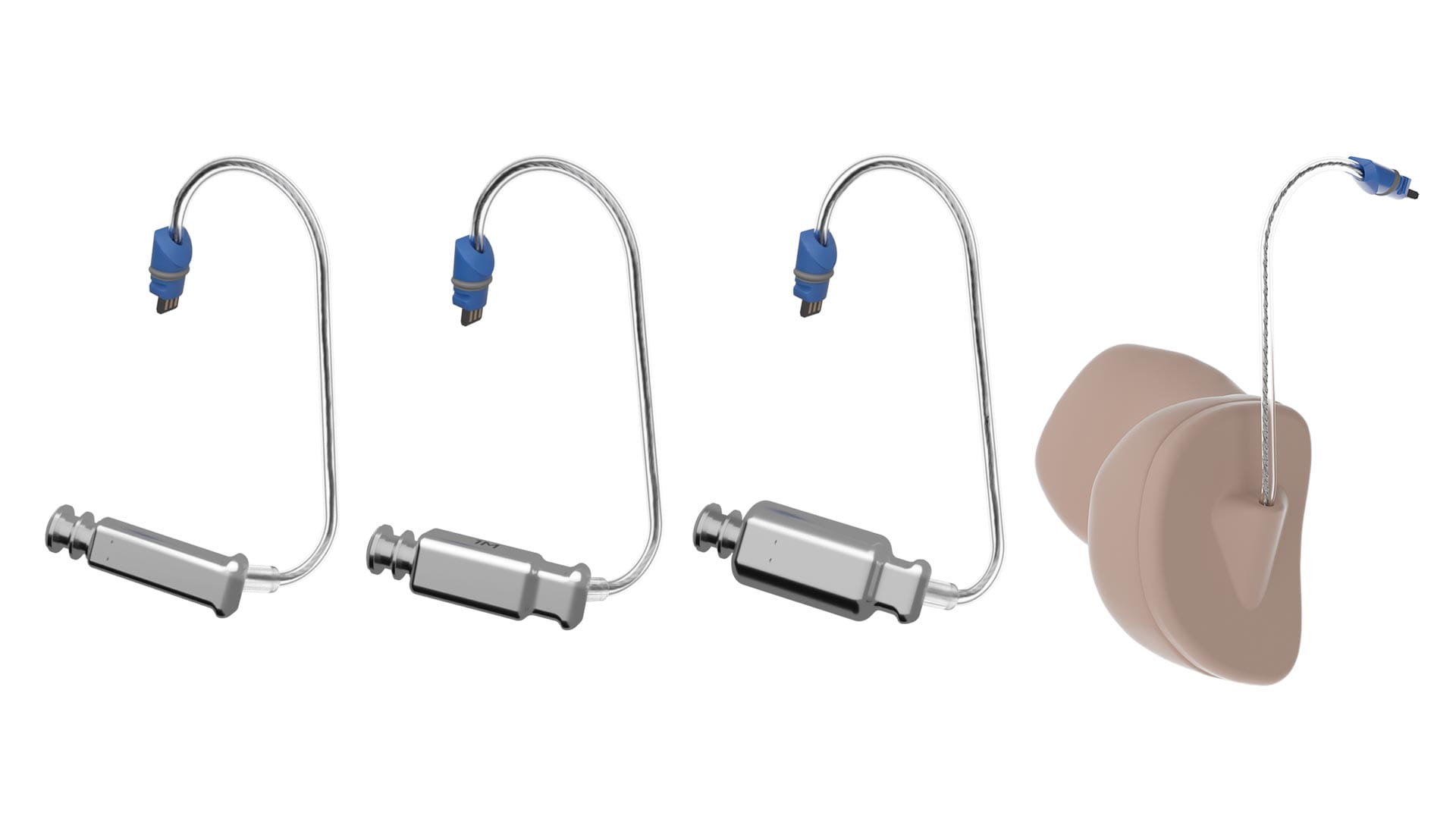

The new miniReceiver 3.0 is cosmetically appealing and designed for optimum fit.

1) Smaller plug for smaller RICs

2) push-/pull system – no tool required

3) Smart Receiver Detection prevents misuse

4) 6-Pin Connector for new features

5) New bending ensures higher retention in ear

6) New bending sits closer = cosmetically more appealing

7) Five sizes 0-4

8) Reinforced cable outlet for highest durability

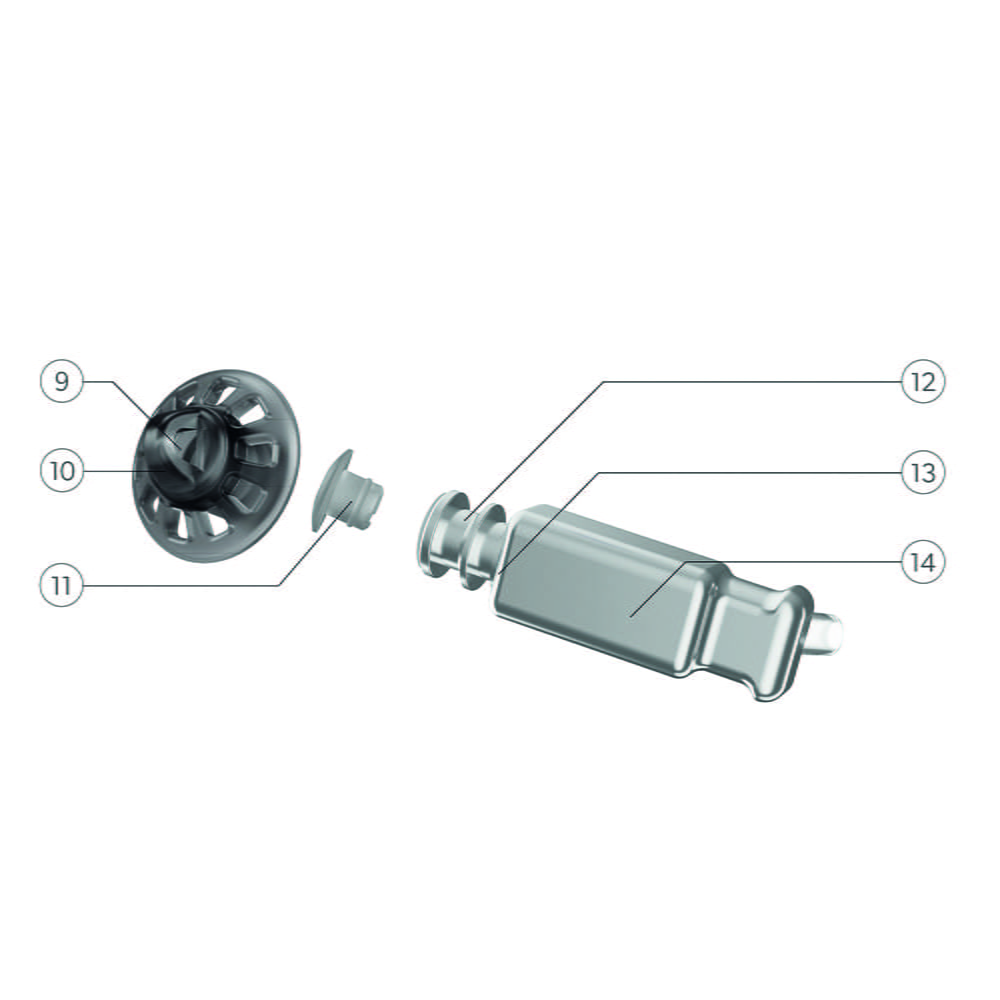

9) Improved wax protection

10) Eartip 3.0 and Sleeve3.0 compatible with miniReceiver 3.0 and ThinTube 3.0
11) WaxGuard 3.0 NanoCare

12) Interface allows easy Eartip 3.0 exchange whilst offering high safety

13) New Eartip 3.0 and interface especially comfortable in small ear canals

14) Titanium-Shield = anti-allergic

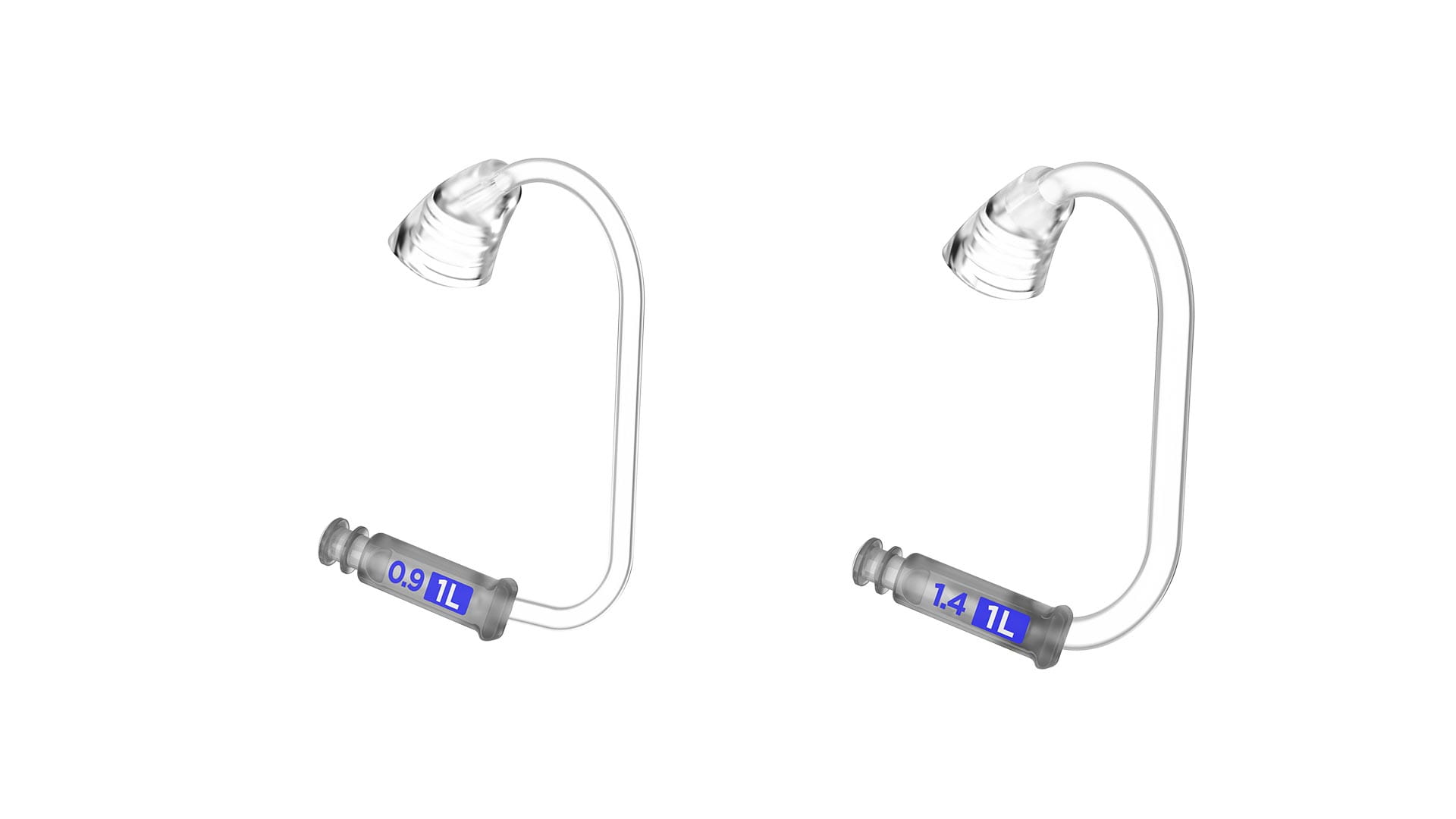

The new 1.4mm-width PowerTube delivers a cosmetically appealing solution for more severe degrees of hearing loss.

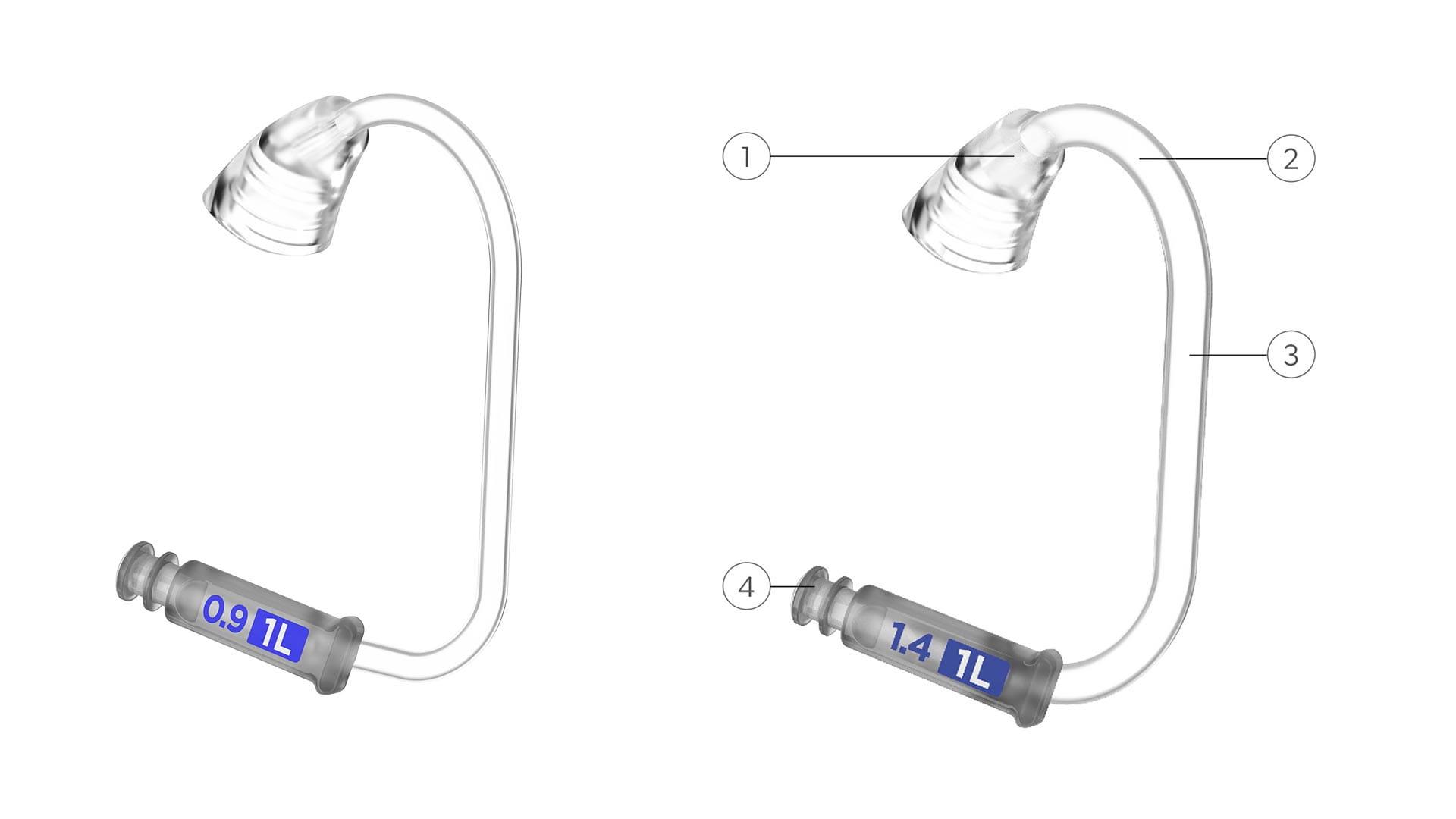

1) One-piece ThinTube 3.0

2) Five sizes 0-4

3) 0.9mm for mild to moderate and 1.4mm for severe losses

4) Increased pull-off force for more safety

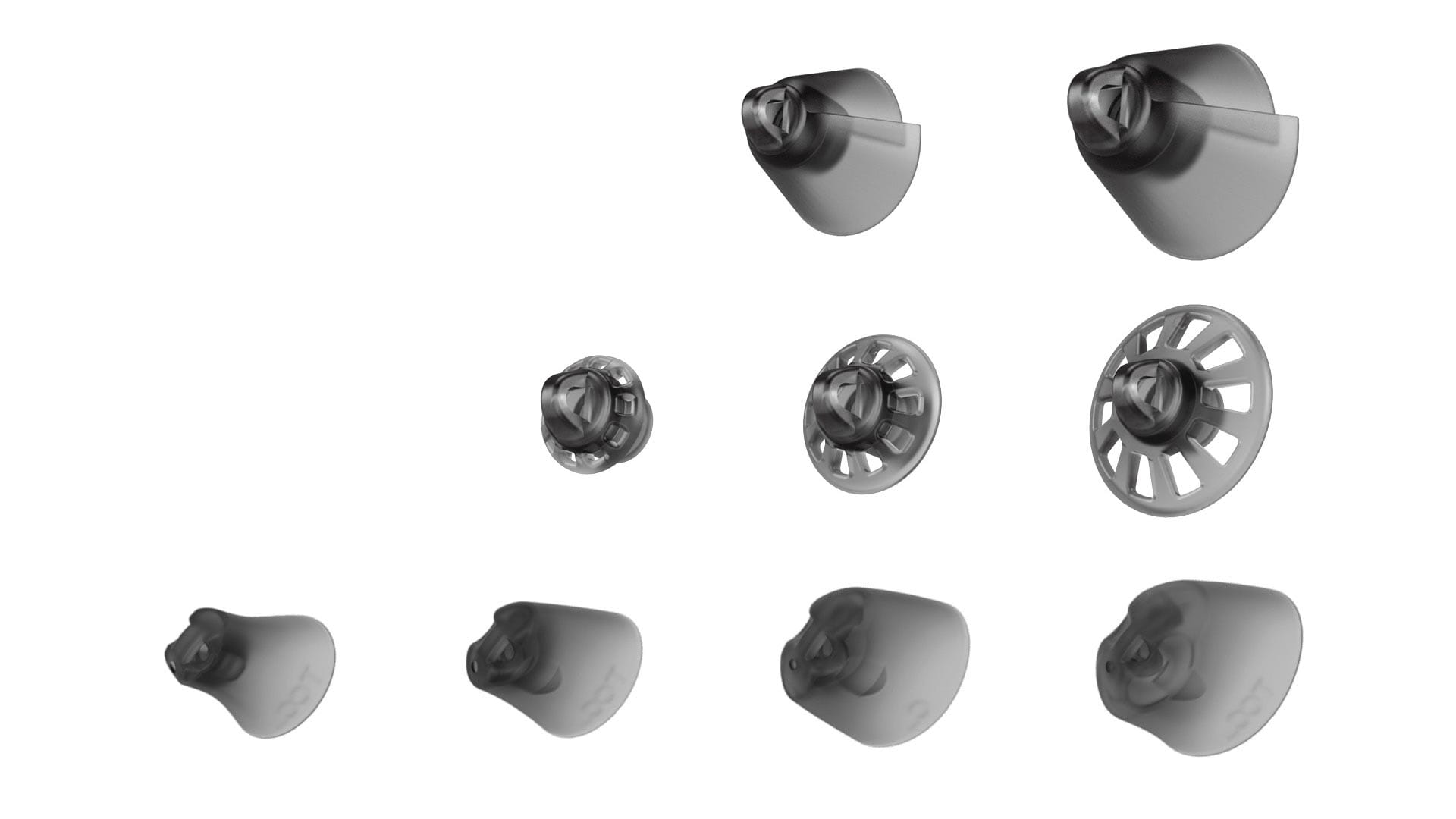

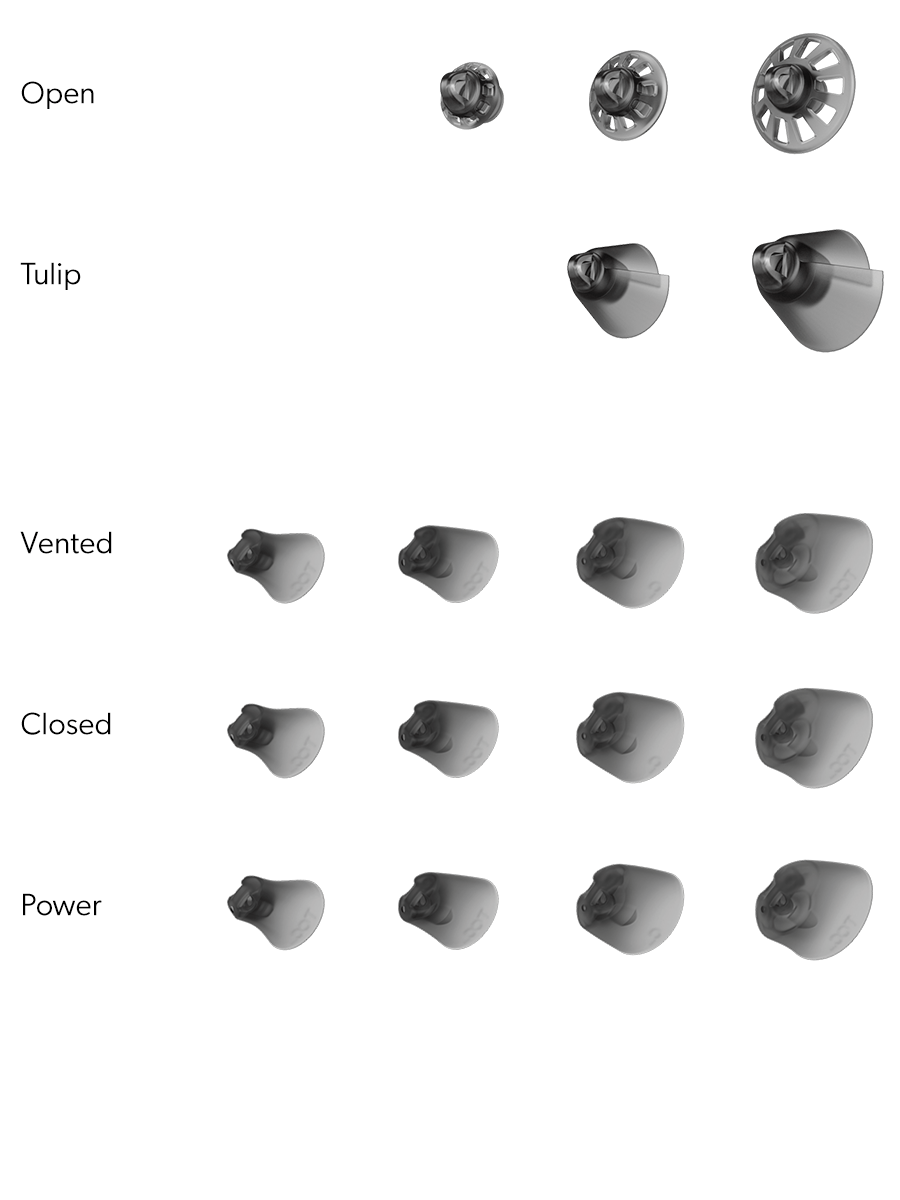

This versatile new range is suitable for the vast majority of ear anatomies and hearing needs.

Soft eartip noses allow for deep insertion with high comfort - also into small ear canals.

The new Power Sleeve 3.0 expands the acoustically highly reliable sleeve to also offer a fully closed option.

The secure and proven design makes clock-domes much easier for consumers to exchange.

All Earwear 3.0 items can be used together.

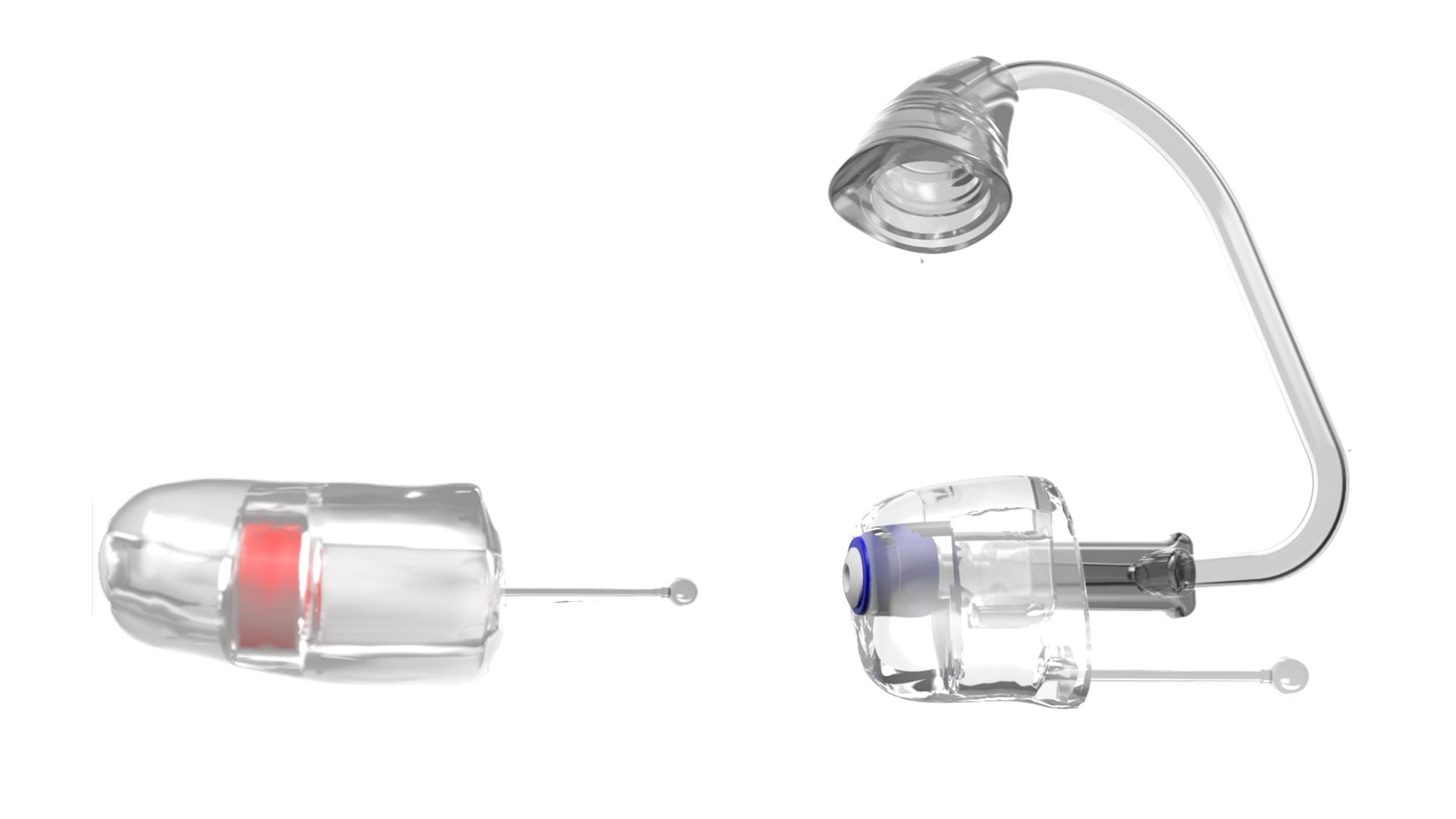

Optimized Earmolds 3.0

miniReceiver 3.0 and ThinTube 3.0 use the new Earmold 3.0 interface.

Earmold 3.0 is available in a short and a long version.

The long Earmold 3.0 comes with:

WaxGuard 3.0 NanoCare
QuickGuard Wax Guard

Starter kits are available for each solution: Eartips 3.0, ThinTube 3.0 and miniReceiver 3.0.

Each kit includes specific items required for that type of EarWear 3.0. These include:

Measurement gauge to ensure a perfect match for miniReceivers 3.0 and ThinTubes 3.0
Matchbook containing 8 Wax Guard 3.0 NanoCare
10-pack of new one-size-fits-all Concha Locks 3.0
Optional tool for exchanging eartips
Tool to press out the receiver from a custom eartip

You also receive instruction manuals on how to use EarWear 3.0, covering everything from eartips and sleeves to attaching or removing ThinTubes 3.0 or miniReceivers 3.0 to exchanging earmolds or WaxGuards.

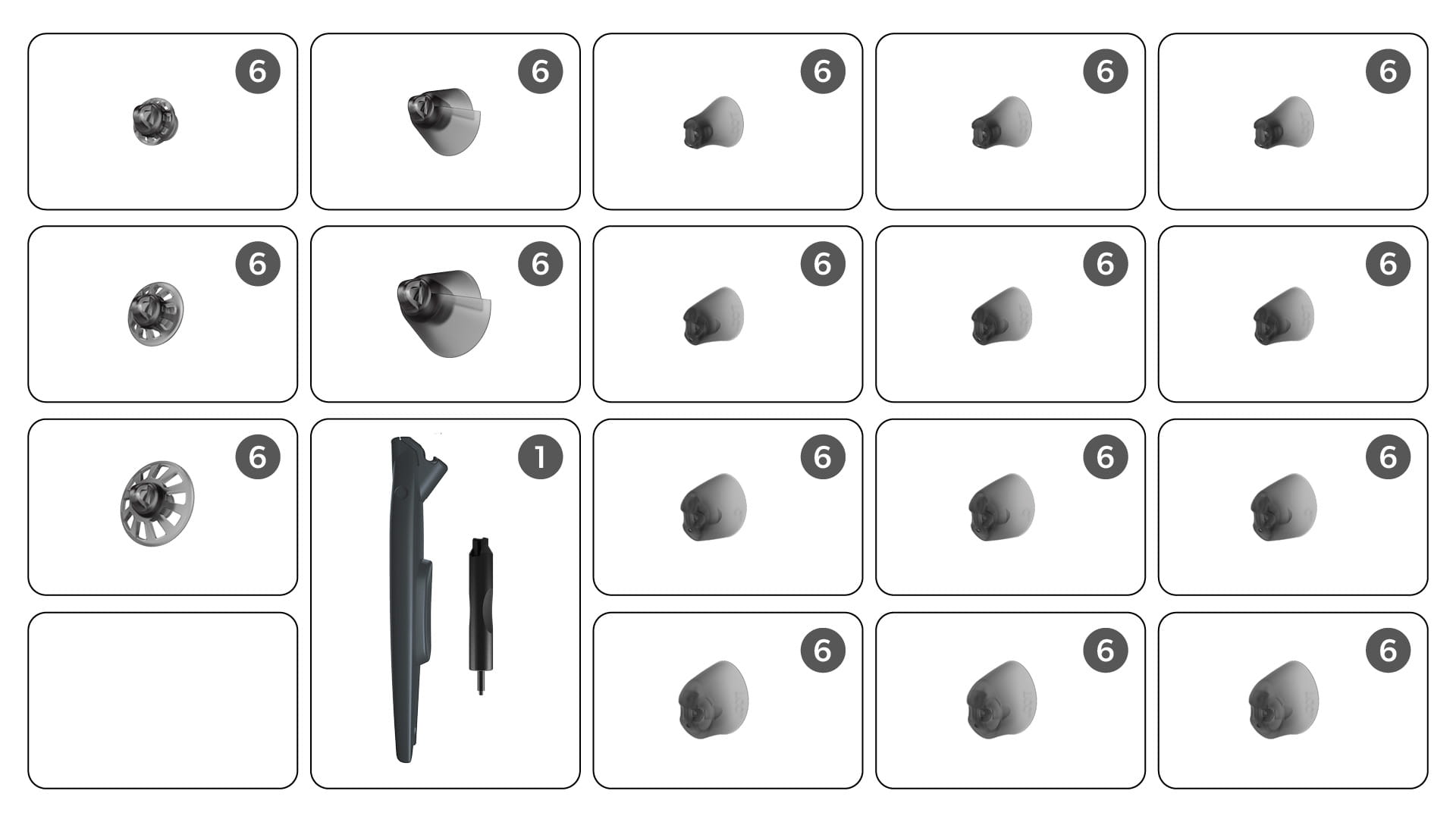

Starter kit Eartips 3.0 contents

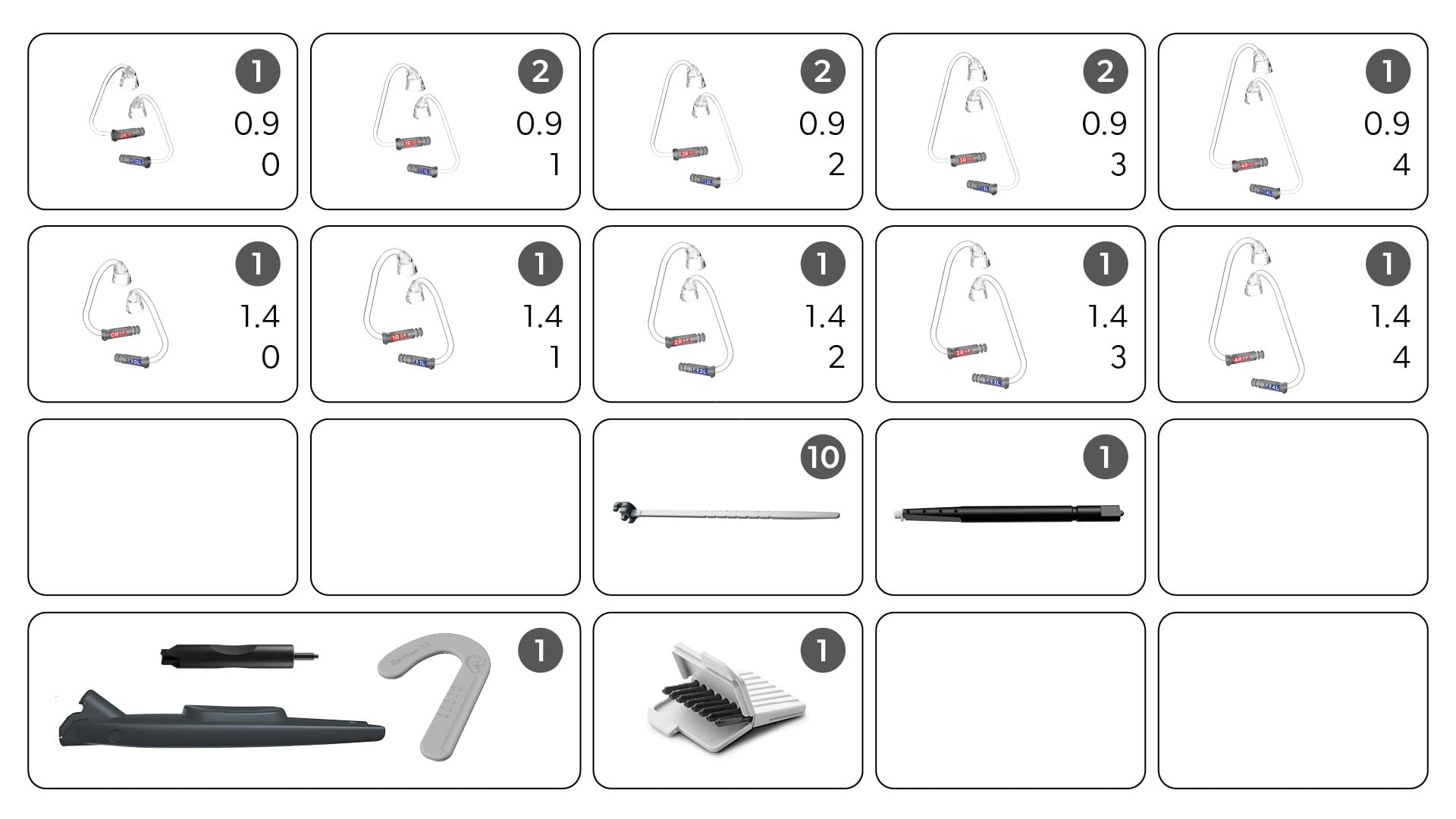

Starter kit ThinTubes 3.0 contents

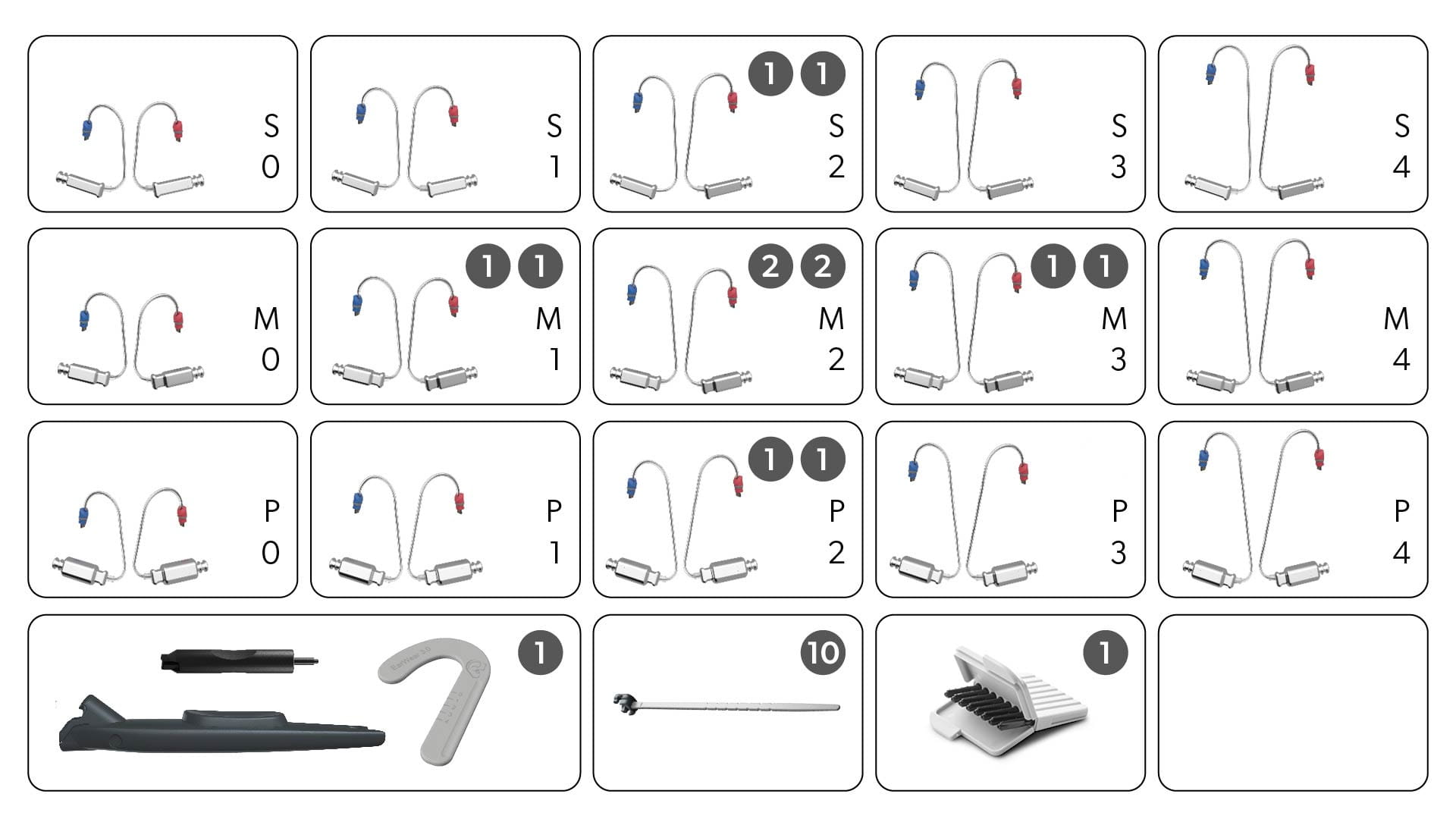

Starter kit miniReceiver 3.0 contents

Different types of earwear are compatible with different hearing aids.

Signia EarWear compatibility

	ThinTube 3.0	miniReceiver 3.0	Eartips 3.0 & Sleeves 3.0	Earmold 3.0	ThinTube	Life-Tips	Life-Earmold	miniReceiver 2.0	Click Domes & Click Sleeves	Click Mold

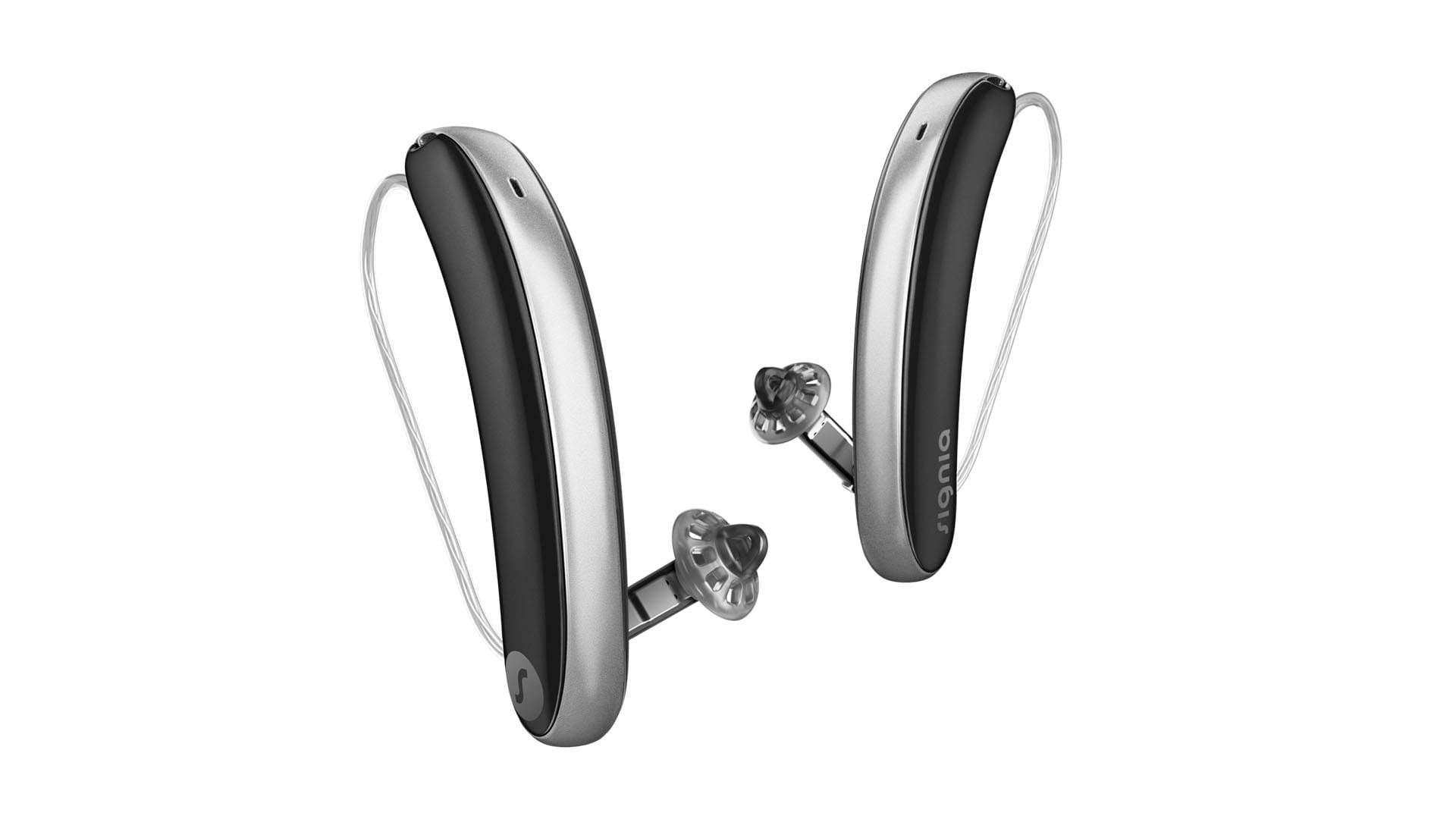

Styletto IX	-	●	●	-	-	-	-	-	-	-

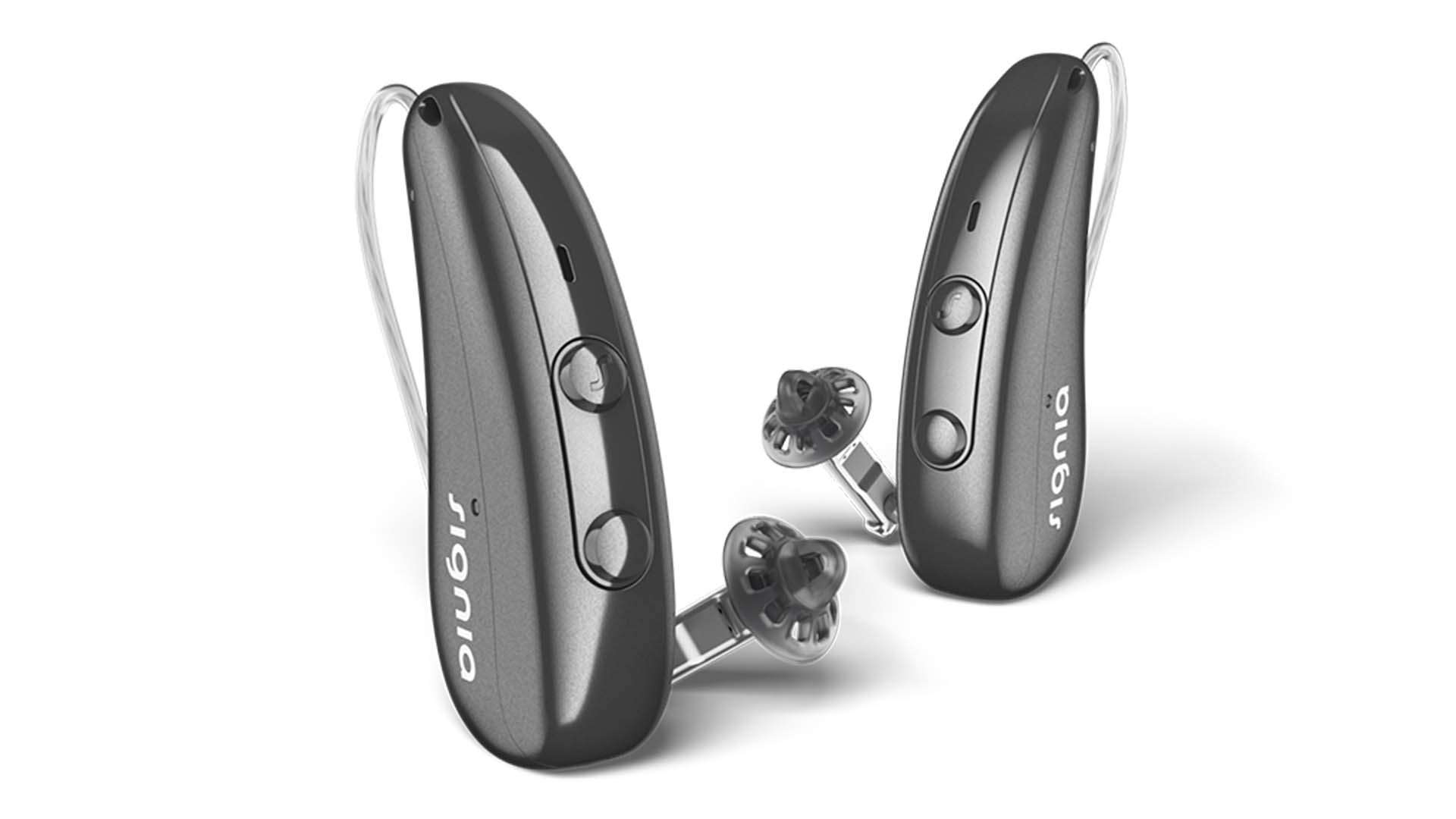

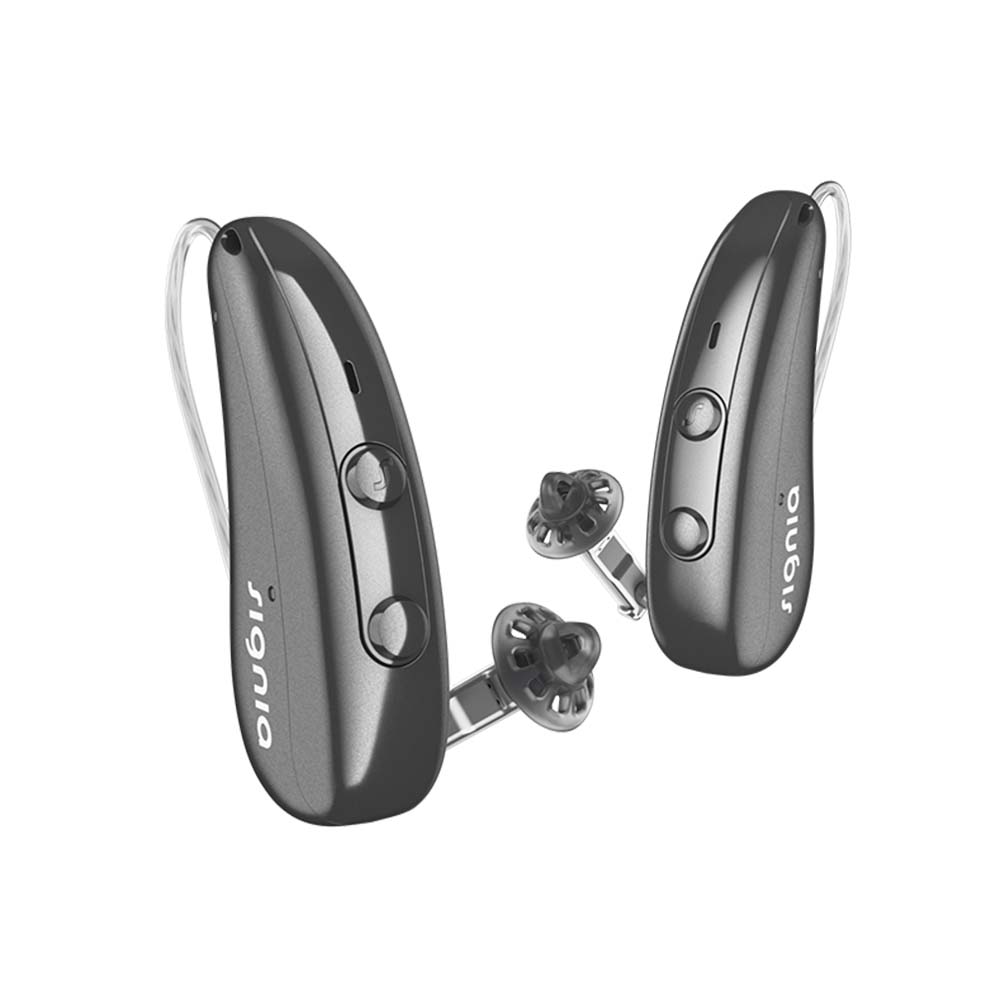

Pure IX	-	●	●	●	-	-	-	-	-	-
Silk IX	-	-	●	-	-	-	-	-	-	-
Styletto AX	-	●	●	-	-	-	-	-	-	-
Pure AX	-	●	●	●	-	-	-	-	-	-
Styletto X	-	-	-	-	-	-	-	●	●	●
Pure X	-	-	-	-	-	-	-	●	●	●

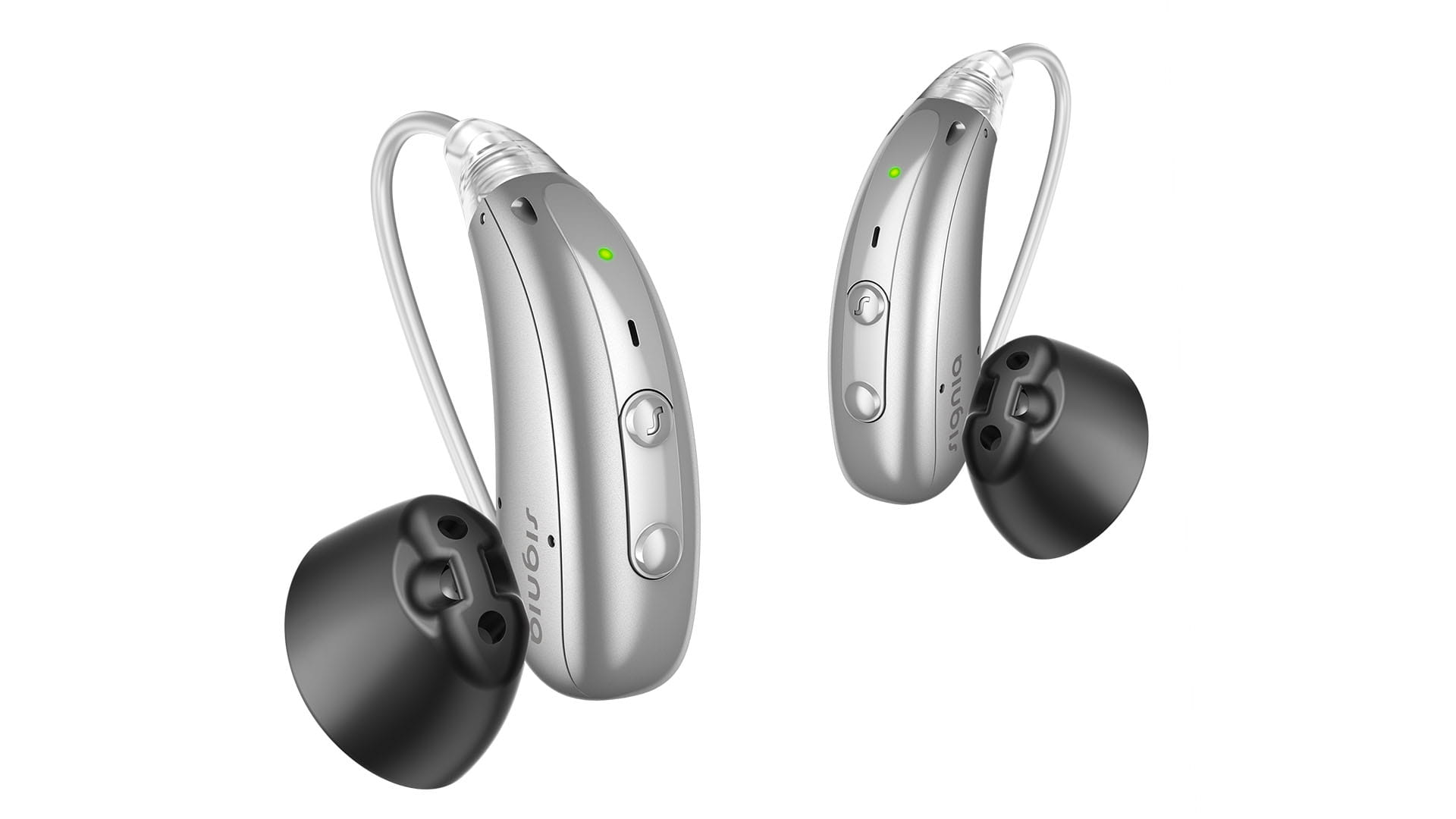

Motion X	●*	-	●	●	-	-	-	-	-	-
Silk X	-	-	-	-	-	-	-	-	●	-
Motion Nx	-	-	-	-	●	●	●	-	-	-
Silk Nx	-	-	-	-	-	-	-	-	●	-

ThinTube 3.0: Styletto IX
-; Pure IX
-; Silk IX
-; Styletto AX
-; Pure AX
-; Styletto X
-; Pure X
-; Motion X
●*; Silk X
-; Motion NX
-; Silk NX
-

miniReceiver 3.0: Styletto IX
●; Pure IX
●; Silk IX
-; Styletto AX
●; Pure AX
●; Styletto X
-; Pure X
-; Motion X
-; Silk X
-; Motion NX
-; Silk NX
-

Eartips 3.0 & Sleeves 3.0: Styletto IX
●; Pure IX
●; Silk IX
●; Styletto AX
●; Pure AX
●; Styletto X
-; Pure X
-; Motion X
●; Silk X
-; Motion NX
-; Silk NX
-

Earmold 3.0: Styletto IX
-; Pure IX
-; Silk IX
●; Styletto AX
●; Pure AX
●; Styletto X
-; Pure X
-; Motion X
●; Silk X
-; Motion NX
-; Silk NX
-

ThinTube: Styletto IX
-; Pure IX
-; Silk IX
-; Styletto AX
-; Pure AX
-; Styletto X
-; Pure X
-; Motion X
-; Silk X
-; Motion NX
●; Silk NX
-

Life-Tips: Styletto IX
-; Pure IX
-; Silk IX
-; Styletto AX
-; Pure AX
-; Styletto X
-; Pure X
-; Motion X
-; Silk X
-; Motion NX
●; Silk NX
-

Life-Earmold: Styletto IX
-; Pure IX
-; Silk IX
-; Styletto AX
-; Pure AX
-; Styletto X
-; Pure X
-; Motion X
-; Silk X
-; Motion NX
●; Silk NX
-

miniReceiver 2.0: Styletto IX
-; Pure IX
-; Silk IX
-; Styletto AX
-; Pure AX
-; Styletto X
●; Pure X
●; Motion X
-; Silk X
-; Motion NX
-; Silk NX
-

Click Domes & Click Sleeves: Styletto IX
-; Pure IX
-; Silk IX
-; Styletto AX
-; Pure AX
-; Styletto X
●; Pure X
●; Motion X
-; Silk X
-; Motion NX
-; Silk NX
●

Click Mold: Styletto IX
-; Pure IX
-; Silk IX
-; Styletto AX
-; Pure AX
-; Styletto X
●; Pure X
●; Motion X
-; Silk X
-; Motion NX
-; Silk NX
-

* Motion SP X is not compatible with ThinTube 3.0

EarWear 3.0 information brochure Uploaded 24/01/24 | PDF | 1.15 MB

FAQs

No, they are not. EarWear 3.0 is compatible with Motion X BTEs and will be compatible with all Signia products going forward.

Yes, the same measuring tool is used for both the miniReceiver 3.0 and ThinTube 3.0.

Yes, they are.

You may still need to use a handling tool when replacing the receiver wire/thin tube for custom ear tips. For this reason, a handling tool is provided in all starter kits.
